Device Access OAuth 2.0 Flows

The flows in this section can be used for scenarios where integration is required with an IOT device which may not provide a full browser supporting another OAuth flow.

Flows covered are summarised below:

Asset Token Flow

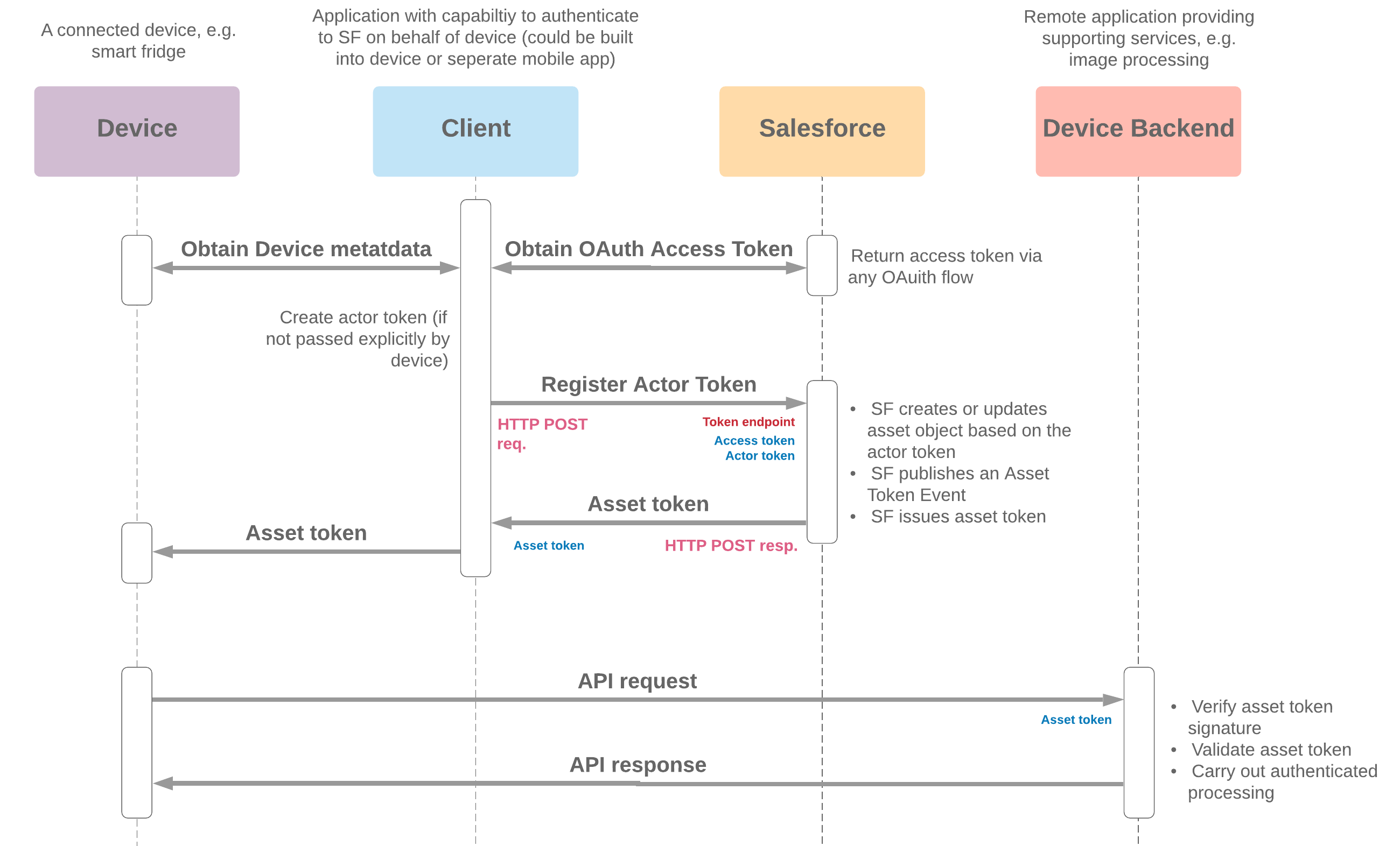

Asset Token Flow Diagram
  • Actor token is a signed JWT including information about device (e.g. name, serial number, contact or account to link to in Salesforce)
  • Device uses asset token to authenticate to a backend service
  • Proof of key possession can be used to provide additional security for API calls - this can be implemented by signing the actor token with the device private key, and binding device public key to asset token in later API requests
  • Asset token can be exchanged for an OAuth access token issued by the device backend for more efficient exchange if multiple calls are required
  • AssetTokenEvent subscription includes information from the actor token and can be useful for initiating processes from actor token registration, for example automatically raising a case
