Browser Access OAuth 2.0 Flows

The flows outlined below involve authentication and authorisation from a user accessing through a web or mobile browser, typically carried out in real time.

In this context, Salesforce can act as the Authorisation Server and Resource Server, where authorisation configuration is controlled a connected app. Resources are provided either directly to the browser, or to a secure client app server which is interacting with the browser.

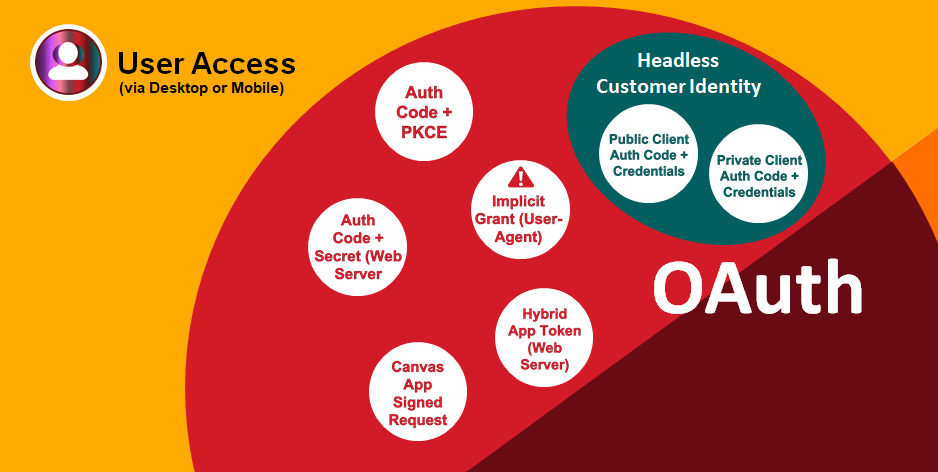

Flows covered are summarised below:

Authorisation Code with Secret (Web Server)

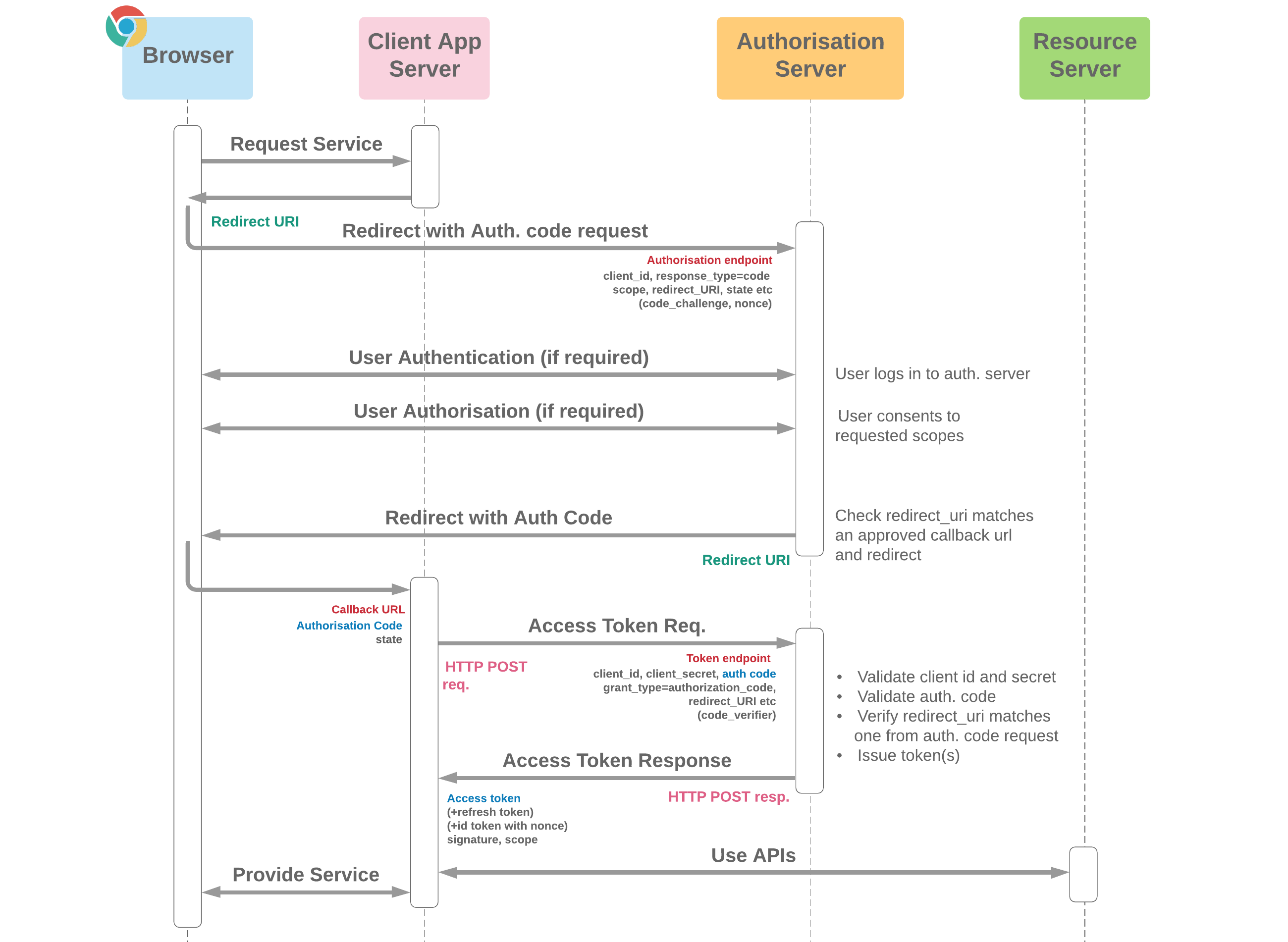

Web Server Flow Diagram
  • This flow provides the highest level of security possible through standard OAuth flows, but is suitable only if the client secret can be protected by the client application - generally this is the case when the application has a back end server component which is operating in a trusted environment (e.g. an internal enterprise server application)
  • The current IETF OAuth working group recommendation is for public and confidential clients participating in any auth. code flow to implement PKCE using code_challenge and code_verifier  (more info on how these are used in the Authorisation Code with PKCE flow below)
  • As an alternative to client secret, a JWT with issuer & subject = client_id signed with the client app's key can be provided in the access token request. For this variation, client_assertion and client_assertion_type should be set instead of client_secret
  • The Salesforce "Web Server" flow is an implementation of this flow where Salesforce is acting as the authorisation and resource server
  • Salesforce can also participate as the client in this flow

Authorisation Code with PKCE

Authorisation Code with PKCE diagram
  • Since 2017, Authorisation Code with PKCE (Proof Key for Code Exchange) has been recommended as the most secure flow for mobile and native apps by the Internet Engineering Task Force (IETF). Their white paper recommendation is linked below
  • The major advantage this has over implicit grant (User-Agent) is that although there's no need for the client to protect credentials or a secret, tokens are returned through a secure channel (an out of band HTTPS call) rather than via the browser URL, which carries risk of a token being leaked through browser history or URL referrals
  • PKCE refers to the use of "code verifier" and "code challenge", which provide an additional layer of security. Code verifier is a 128 byte base64url encoded random string generated by the app, and code challenge is the base64url encoded SHA256 hash of this string
  • Native apps may make use of a custom URL scheme (e.g. MyApp://) or localhost (e.g. http://localhost/) to capture redirects - exposing authorisation codes issued for this flow carries low risk
  • The authorisation server checks the application is making an authorised token request by comparing code challenge to the hash of code verifier. When these match, the authorisation server can be confident the entity making the token request is the same one which requested the authorisation code - the one-way nature of the hash function makes it difficult for an attacker to find a matching code verifier and so impersonate the authorised client even if code challenge and auth code are intercepted
  • To configure Salesforce as an authorisation server allowing this flow, a connected app is needed with the option "Require Secret for Web Server Flow" disabled

Canvas App Signed Request

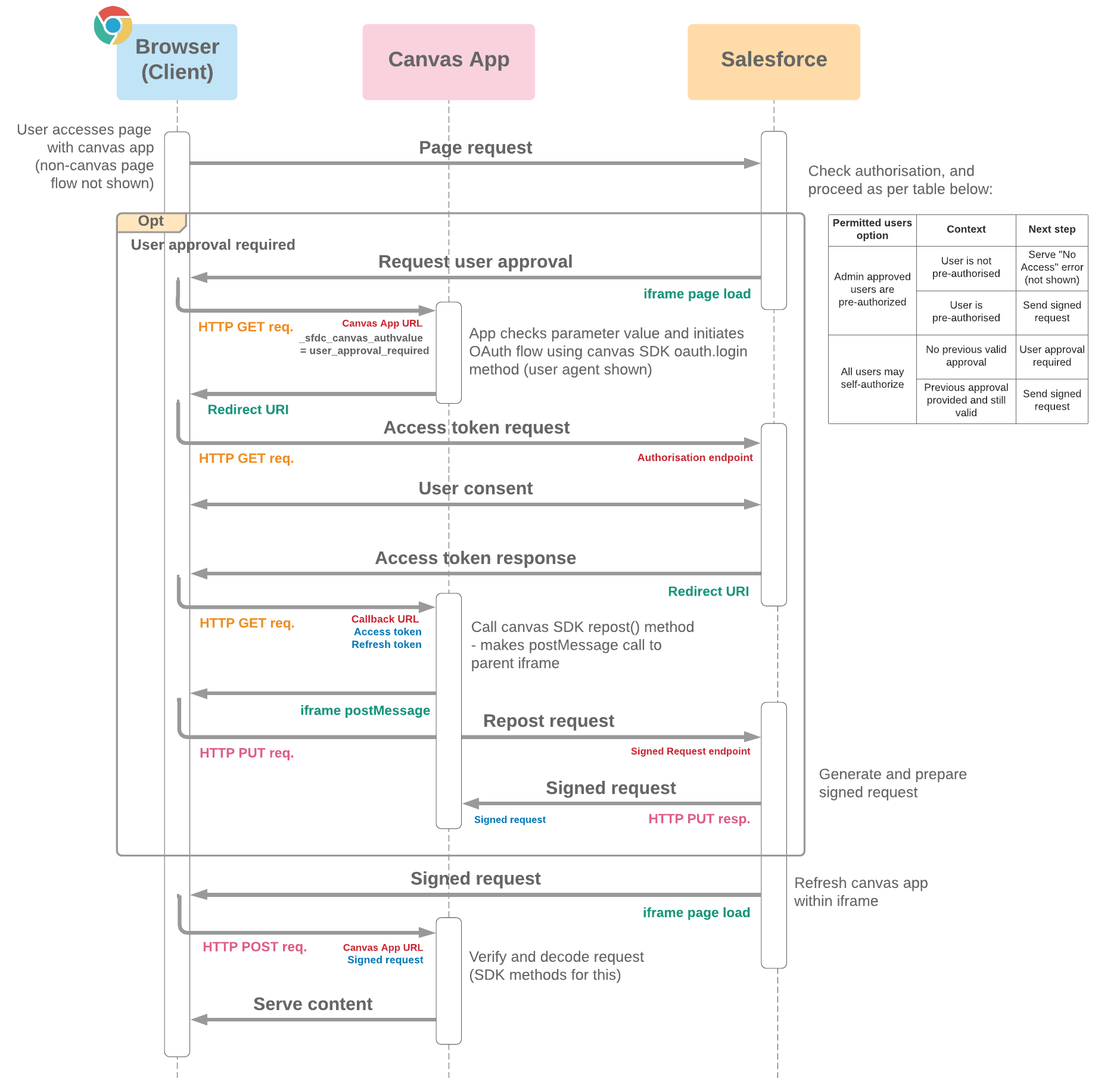

Canvas App Signed Request Flow Diagram
  • Signed request flow is offered as an alternative to the canvas app initiating a standard OAuth flow (e.g. user-agent)
  • The advantage over a standard OAuth flow is that a user can log in to the canvas app without needing to consent to sharing scopes, and without the app needing to store and manage a token
  • The Canvas SDK features an implementation of this method which can be used by third party apps
  • The signed request is appended as parameter in the final POST request shown to the canvas. The request consists of a hashed, signed base64 encoded context, and the base64 encoded context itself separated with a period
  • repost() and refreshSignedRequest() Canvas SDK methods allow either the client or server (respectively) to issue or request new tokens on demand, and can be useful after redirects within canvas app, or after OAuth token expiry. The browser-based repost() method is shown in this flow
  • The flow in the optional section here assumes the user is permitted access to the app but doesn't yet have a valid approval. Behaviours in other scenarios are described in the table

Hybrid App Token Flow

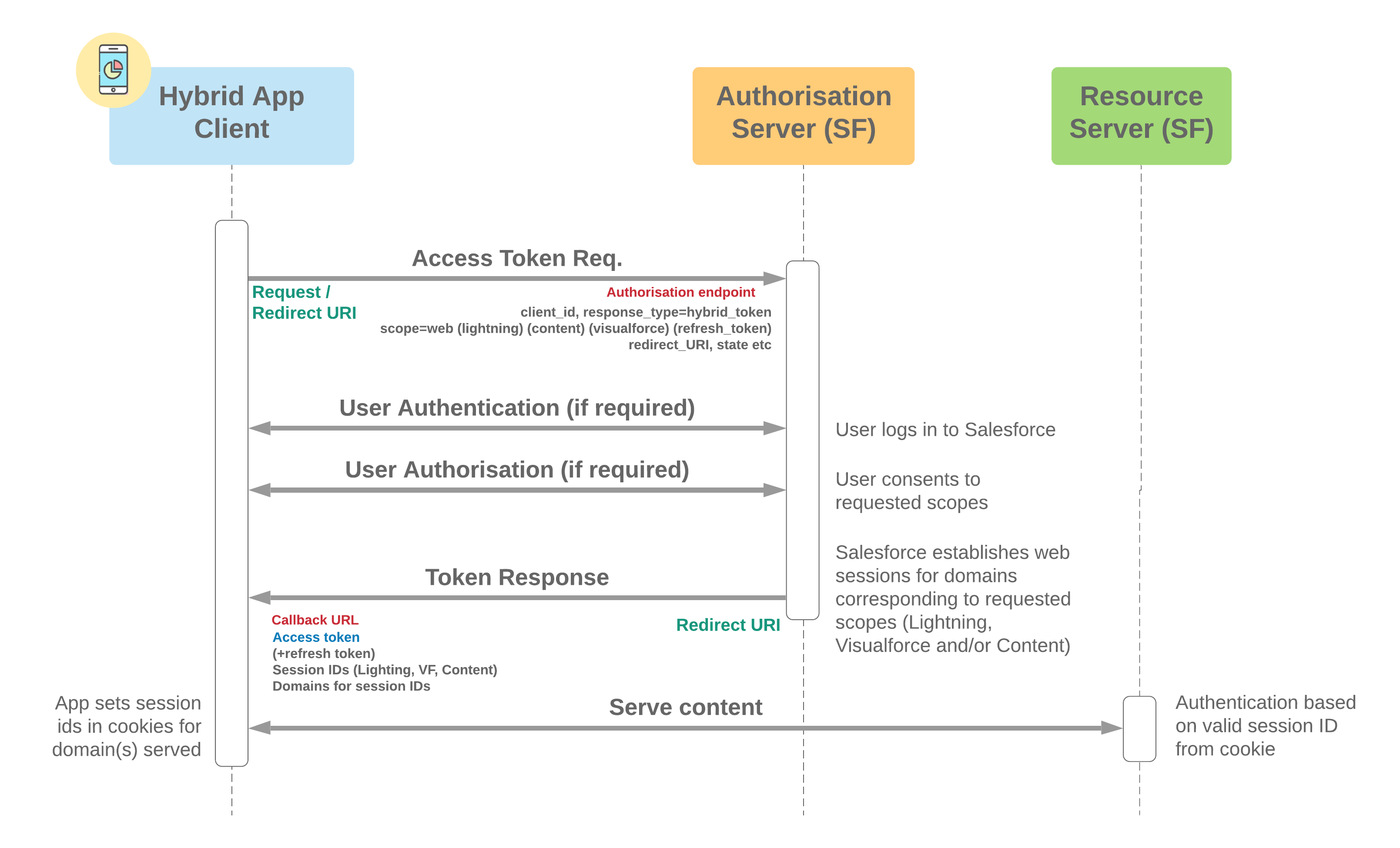

Hybrid App Token Flow
  • Session IDs (SID) are returned with the access token for each requested domain scope (lightning, visualforce and content) to allow the app to directly bridge a session by setting SID values in cookie(s) for the relevant domains
  • Session tokens are bound to the access token, so processes to manage renewing tokens can be aligned
  • Without this flow, bridging a web session would require a POST to the frontdoor.jsp URL with the access token, which would redirect and set a SID cookie for the requested resource. Under this approach, access tokens and web sessions can expire independently so management is a little more challenging
  • Both user agent and web server versions of the flow are possible (user agent is pictured)
  • A corresponding refresh token flow (grant_type=hybrid_refresh) is available for renewing tokens
  • Developed to support Mobile SDK 9.1, and hybrid_token grant type is now used in the core Mobile SDK project

Legacy & Special Scenarios

The flows below are supported by Salesforce, but are not recommended for most scenarios due to suboptimal security, use of a legacy protocol or lack of support in typical integrating applications.

Implicit Grant (User-Agent)

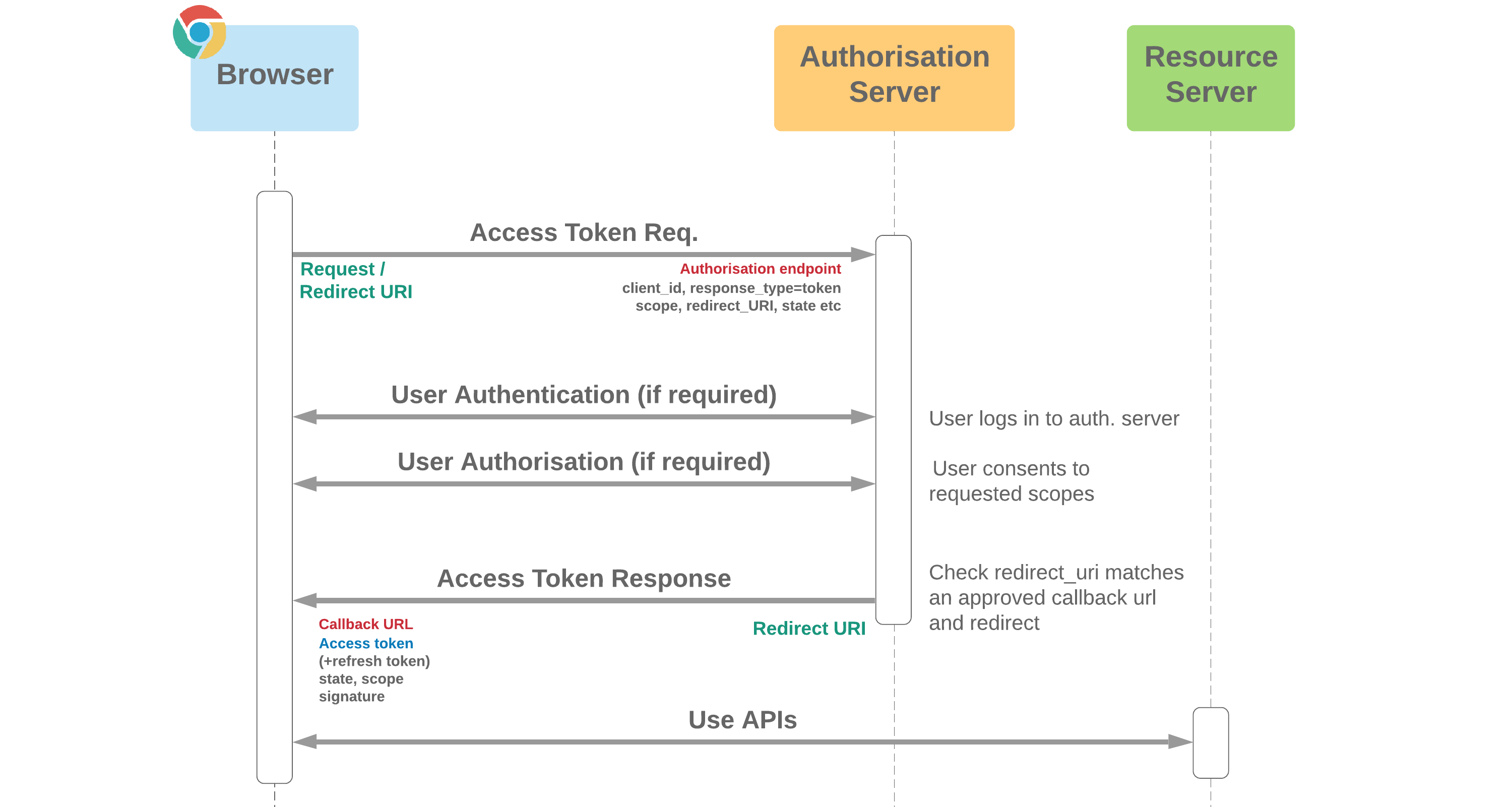

User Agent Flow Diagram
  • The flow can be used in circumstances where a client secret can't be protected, for example in a mobile or desktop application, or client app running in a browser, such as a SPA
  • Identity is based on the same-origin policy (redirect_uri must match one of the Callback URL values in connected app)
  • The flow is sub-optimal from a security perspective in many scenarios, as tokens are transmitted in URL. This means they are accessible to the browser and stored in browser history, which is frequently synced across devices and susceptible to attack. It's advisable to ensure that access token validity is short and refresh tokens aren't used to reduce the risk of such attacks
  • Prior to 2017, this flow was recommended as best practice for mobile and native applications, however the current recommendation is to implement the more secure Authorisation Code with PKCE flow described below in contexts where an out of band POST can be made
  • The Salesforce "User-Agent" flow is an adaptation of the OAuth 2.0 Implicit Grant flow where Salesforce acts as the authorisation and resource servers. Some security counter-measures (e.g. tokens and sessions being returned in URL hash fragments rather than query string parameters) have been implemented to improve security. A connected app is needed to support this configuration
  • Salesforce Mobile SDK implements the User-Agent flow, so apps developed through this framework (including Mobile Publisher apps) will authenticate in this way
